Live demo
Use CircuitMap on a real building — right here
Open the dashboard, click into Riverside House, then map a room, drop a board, add a circuit and print its schedule. It is all live and clickable. No signup, no email address, nothing to install.
- No signup
- Runs in this page
- Nothing to install
- Sample data — nothing is saved
Your buildings

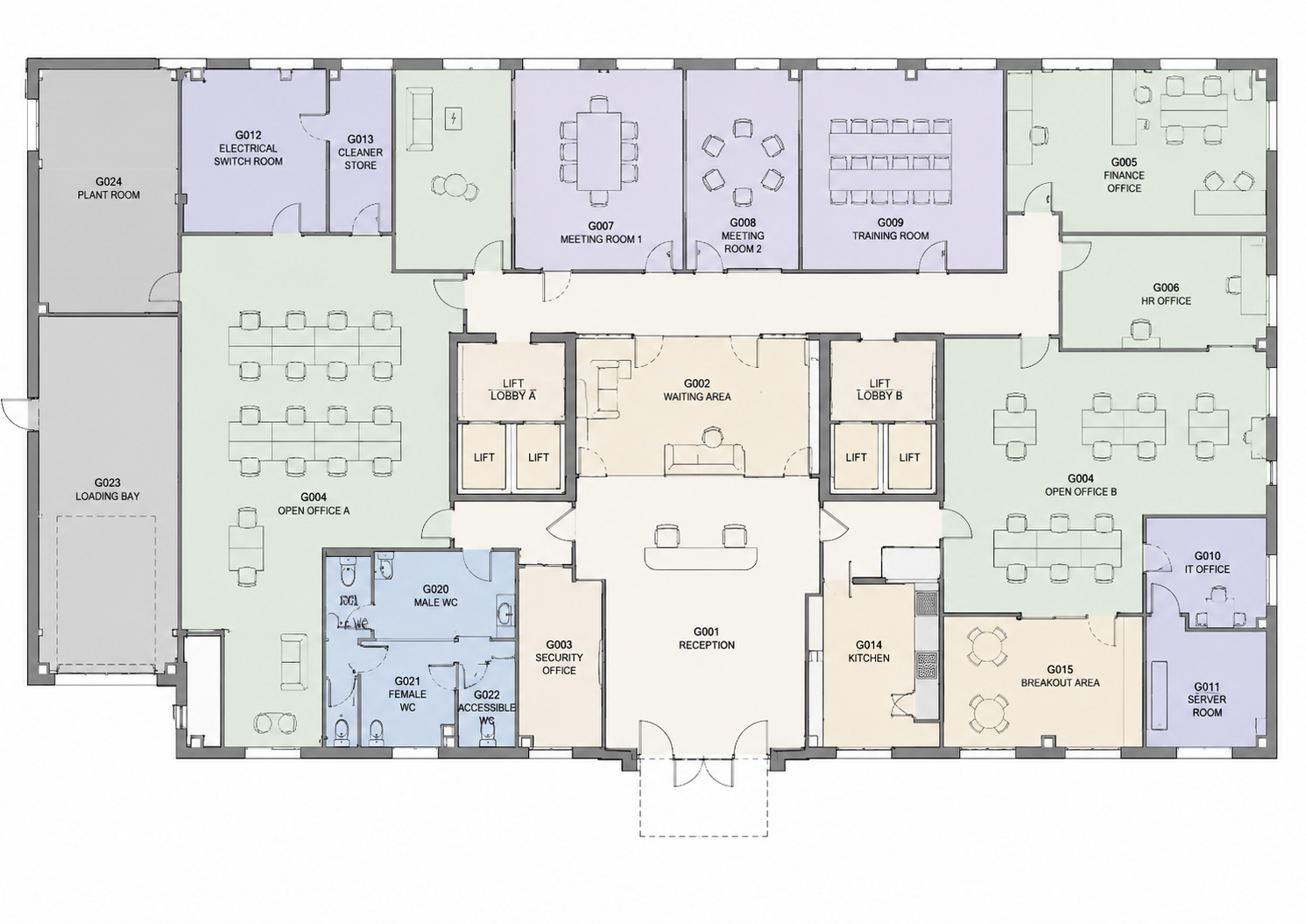

Riverside House
3-storey commercial office · sample building
Unit 4, Riverside Business Park
- Floors
- 2
- Rooms
- 22
- Boards
- 3
- Circuits
- 15
Sample data. Nothing here touches a real system — click around freely.
Six things worth trying
If you only have five minutes
These six tend to make it click. The rest of the building is there if you fancy a wander.
Map a room
Drag one out on the plan and name it.
Drop a board
Put a distribution board where it really is.
Add a circuit
Run the survey, one question at a time.
Print the schedule
A BS 7671-style chart, straight from the record.
Look at a QR label
See what an engineer gets when they scan one.
Line the floors up
Trace a riser through the slab.
This is a self-contained sample. The real thing runs on your own server, with your own plans — here is how that works.
Now picture your own buildings in it
Bring one floor plan to a 30-minute call and we will map a real board from one of your sites — the same steps you have just done, on your data.
No pitch deck. No credit card. No follow-up sequence.
